Helm¶

A Helm chart to deploy vLLM for Kubernetes

Helm is a package manager for Kubernetes. It helps automate the deployment of vLLM applications on Kubernetes. With Helm, you can deploy the same framework architecture with different configurations to multiple namespaces by overriding variable values.

This guide will walk you through the process of deploying vLLM with Helm, including the necessary prerequisites, steps for Helm installation and documentation on architecture and values file.

Prerequisites¶

Before you begin, ensure that you have the following:

• A running Kubernetes cluster
• NVIDIA Kubernetes Device Plugin (k8s-device-plugin): This can be found at https://github.com/NVIDIA/k8s-device-plugin
• Available GPU resources in your cluster
• (Optional) An S3 bucket or other storage with the model weights, if using automatic model download

Installing the chart¶

To install the chart with the release name test-vllm:

helm upgrade --install --create-namespace \
  --namespace=ns-vllm test-vllm . \
  -f values.yaml \
  --set secrets.s3endpoint=$ACCESS_POINT \
  --set secrets.s3bucketname=$BUCKET \
  --set secrets.s3accesskeyid=$ACCESS_KEY \
  --set secrets.s3accesskey=$SECRET_KEY

Uninstalling the chart¶

To uninstall the test-vllm deployment:

helm uninstall test-vllm --namespace=ns-vllm

The command removes all the Kubernetes components associated with the chart including persistent volumes and deletes the release.

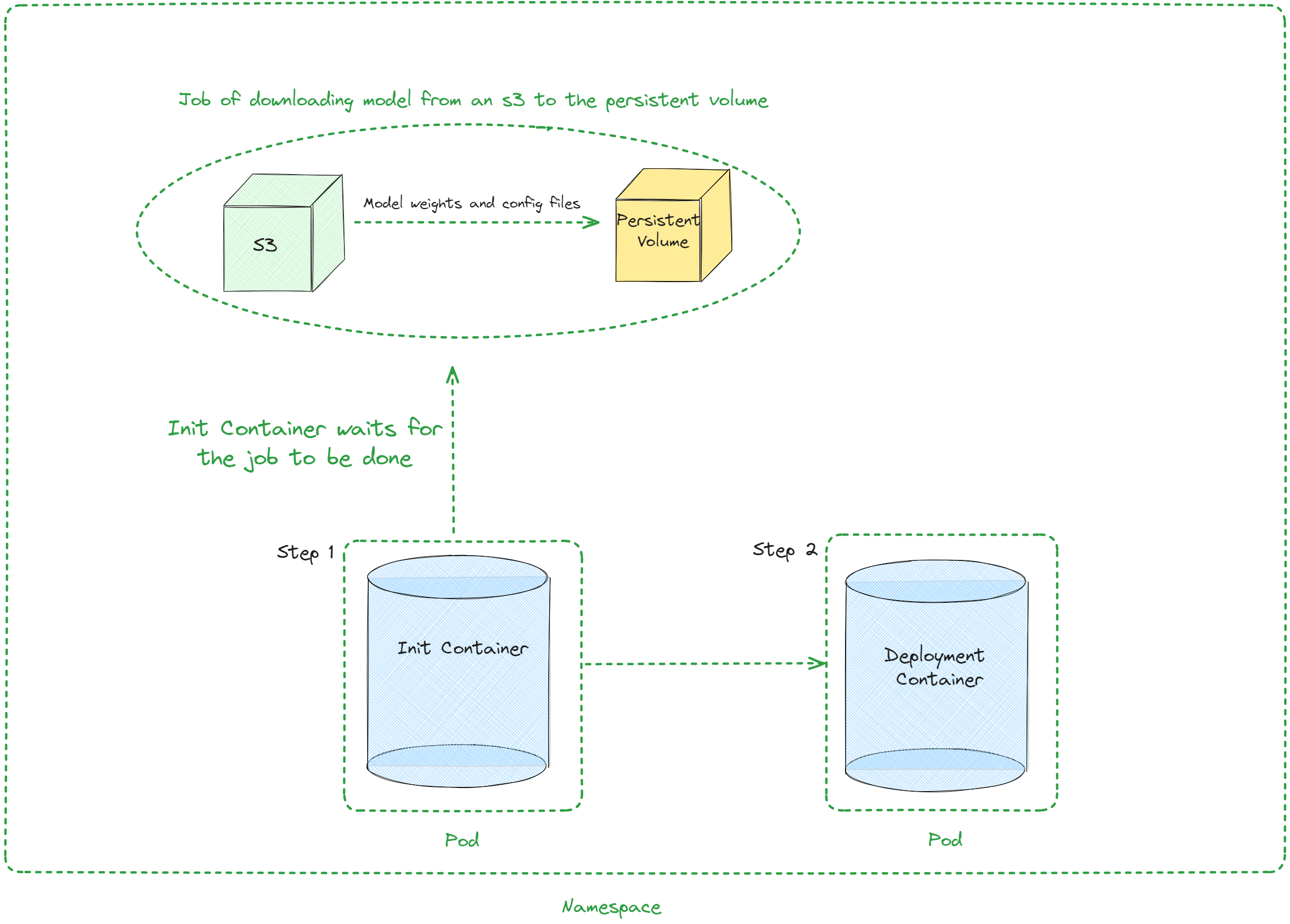

Architecture¶

Values¶

The following table describes configurable parameters of the chart in values.yaml:

Configuration Examples¶

Using S3 Model Download (Default)¶

extraInit:
  modelDownload:
    enabled: true
  pvcStorage: "10Gi"
  s3modelpath: "models/llama-7b"

Using Custom Init Containers Only¶

For use cases like llm-d where you need custom sidecars without model download:

extraInit:
  modelDownload:
    enabled: false
  initContainers:
    - name: llm-d-routing-proxy
      image: ghcr.io/llm-d/llm-d-routing-sidecar:v0.2.0
      imagePullPolicy: IfNotPresent
      ports:
        - containerPort: 8080
          name: proxy
      securityContext:
        runAsUser: 1000
      restartPolicy: Always
  pvcStorage: "10Gi"
